Robland SD510 Planer Thicknesser

From £8,800.00 + VAT

(£10,560.00 inc VAT)

The Robland SD510 Planer Thicknesser is a strong, well-built machine with a 2250mm planer table length, 100mm spindle diameter, electrical rise and fall of table.

This machine has the following Options Installed above standard

COMFORT PACK – includes digital readout on the thicknesser, 4 feed speeds, foldable protection on the planer, aux fence for planing narrow pieces

SPIRAL CUTTER BLOCK



Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Motor power
5.5 kW
cutter block diameter
100 mm
Length of thickness table
2250 mm
Dust extraction outlet
150 mm
Voltage / Phase
415V / 3ph
Thickness width
510 mm
Thickness Height
250 mm
Number of knives
4
Overall Dimensions
2300 x 1500 x 980 mm
Feed Speed
5-8-10 16m/min

Robland SD510 Planer Thicknesser


A strong sense of craftsmanship. Both professional and industrial woodworkers require a strong, well-build precision machine, simple and easy to use that will give good reliable service for many years to come.

Thickness capacity

It is possible to work pieces of wood with a thickness up to 250 mm.

Electrical Adjustment

Electrical vertical adjustment of the thicknesser and digital read out of the work-piece height. Press the button continuously, if a fast movement is wished. During micro-adjustment, touch the button briefly. Accuracy up to 1/10mm.

4 Sturdy columns

The thicknesser is based on to 4 sturdy columns.

serrated roller infeed on its own Robland Planer Thicknesser NXSD
Spiral infeed rollers

Spiral infeed rollers guarantee an efficient through-feed of the wood and a good surface.

2 friction reduction rolls

2 friction reduction rolls: easier sliding of wet wood.

Tersa block on its own. Robland Planer Thicknesser NXSD
Tersa Block

This machine can be equipped also with the Tersa system, to achieve a fast exchange and perfect adjustment of the knives.

Heavy hinges

Heavy hinges and strong springs for smooth and easy opening of the table

Morticer

The morticer is equipped with steel guidance and 6 linear ball bearings, warranty for an easy operation of the machine (and maintenance free). The drilling head rotates with 3000 r/min. For working with larger surfaces, e.g with doors, the control lever can be put into the lower position.

Robland SD-510 Planer Thicknesser

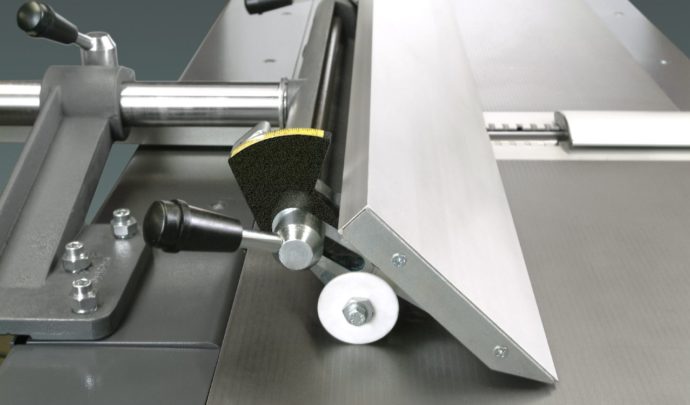

Planer Fence

Adjustable planer fence: tilt between 90° – 45°

Comfort pack

The comfort pack on the SD 510 conssists of 4 feeding speeds, digital read out for the height, and an automatic star delta switch.
